| 基本规格 |
| 名称/型号 |
S15 |
硬件方案 |
Master control: Qualcomm Snapdragon 660, DAC: AK4191+AK4499EX, USB decoding: XU316, Bluetooth: QCC5125 (reception) |
| Work mode |
Android mode/Pure Music mode/USB DAC mode/Bluetooth receiving mode/AirPlay mode/Coaxial Decoding mode/Roon Ready/Optical Decoding mode/HDMI IN mode, HDMI ARC mode and AES Decoding mode |
| 颜色 |
黑/银 |
重量 |
About 5647g |
| 尺寸 |
About 430x274.5x89.5mm |
音量控制 |
音量旋钮 |
| 显示 |
7.84-inch (400*1280) bezel-less display |
ROM |
64GB/About 46GB available |
| RAM |
4GB |
M.2 portable hard disk |
Supports 2TB |
| Storage card |
Single microSD card expansion, supports up to 2TB in theory |
声道平衡 |
L20~R20 (each for 0.5dB) |
| 按键与接口 |
| 旋钮 |
Encoder knob (including volume adjusting)*1+Output selection knob (including power on/off)*1 |
USB |
Type-C USB3.0*1+USB A*2 (data transfer) |
| Grounding terminal |
M6x23mm grounding terminal |
翘板开关 |
Ground selection switch*1 |
| Balanced line-out port |
XLR3平衡接口 |
Single-ended line-out port |
RCA端口* 2 |
| 数字光纤输入端口 |
光端口 |
数字同轴输入端口 |
RCA端口 |
| 数字光输出端口 |
光端口 |
Digital coaxial output port |
RCA端口 |
| AES input port |
XLR3平衡接口 |
AES output port |
XLR3平衡接口 |
| TRIGGER port |
Standard 3.5mm headphone port (TRIGGER OUT port*1) |
HDMI port |
HDMI IN port*1, HDMI OUT (ARC) port*1 |
| 网口 |
100M Ethernet port |
I2S port |
HDMI I2S output port*1 |
| 特种公职部门 |
| WiFi |
2.4GHz/5GHz, supports DLNA, AirPlay, WiFi song transfer, Roon Ready, etc. |
蓝牙传输(5.0) |
AAC/SBC/aptX/aptX HD/LDAC/LHDC |
| 蓝牙接收(5.1) |
SBC/AAC/aptX/aptX LL/aptX HD/aptX Adaptive/LDAC |
卓宁链接 |
Android supports WiFi and Bluetooth control, iOS supports Bluetooth control |
| HDMI decoding |
Supports audio decoding for DVD/set-top box/computer |
HDMI ARC |
Supports audio decoding for devices with ARC function |
| HDMI I2S |
Supports audio decoding for devices with I2S input |
全转DSD |
支持 |
| 均衡器调整 |
10-band dynamic EQ adjustment (±12dB), built-in 8 preset EQ, supports self-define EQ |
MQA |
Supports full decoding |
| Operating mode |
Supports gesture navigation, two-button navigation and three-button navigation |
Bluetooth codec indicator (knob indicator light) |
蓝色： SBC |
| 最大支持采样率 |
USB DAC: Up to768kHz/32bit; DSD512 (Native) |
青色： AAC |
| Native decoding: Up to384kHz/32bit; DSD256 (Native) |
紫色： aptX/aptX LL |
| USB音频： 768kHz/32bit ； DSD512 （支持DoP/D2P/Native ） |
黄色： aptX HD |
| Coaxial in decoding: Up to192kHz/24bit |
白色： LDAC |
| AES in decoding: Up to192kHz/24bit |
Green: aptX Adaptive |
| Optical in decoding: Up to96kHz/24bit |
Orange: LHDC |
| Coaxial out: Up to384kHz/24bit; DSD128 (D2P/DOP) |
Sampling rate indicator (knob indicator light) |
Blue: Lossy |
| AES out: Up to384kHz/24bit; DSD128 (D2P/DOP) |
Cyan: SQ |
| Optical out: Up to192kHz/24bit |
Yellow: HR |
| HDMI in: Up to192kHz/24bit |
绿色： DSD |
| HDMI out: Up to192kHz/24bit |
洋红： MQA |
| Screensaver |
支持 |
轻触两次即可醒来 |
支持 |
| 固件升级 |
Supports upgrade through local storage+microSD card+OTA |
|
| 电源参数 |
| 电源 |
Supports AC 110~120V/220~240V 50/60Hz; 230V and 115V input level switch |
|
| 音频参数 |
| Performance and parameters of pre XLR out (XLR3 out, USB DAC/Optical/Coaxial/AES decoding) |
| THD+N |
＜0.00023% (1kHz/0dB@10KΩ) |
SNR |
≥131dB (A-weighted) |
| 串扰 |
≥126dB |
本底噪声 |
＜2.6uV (A-weighted) |

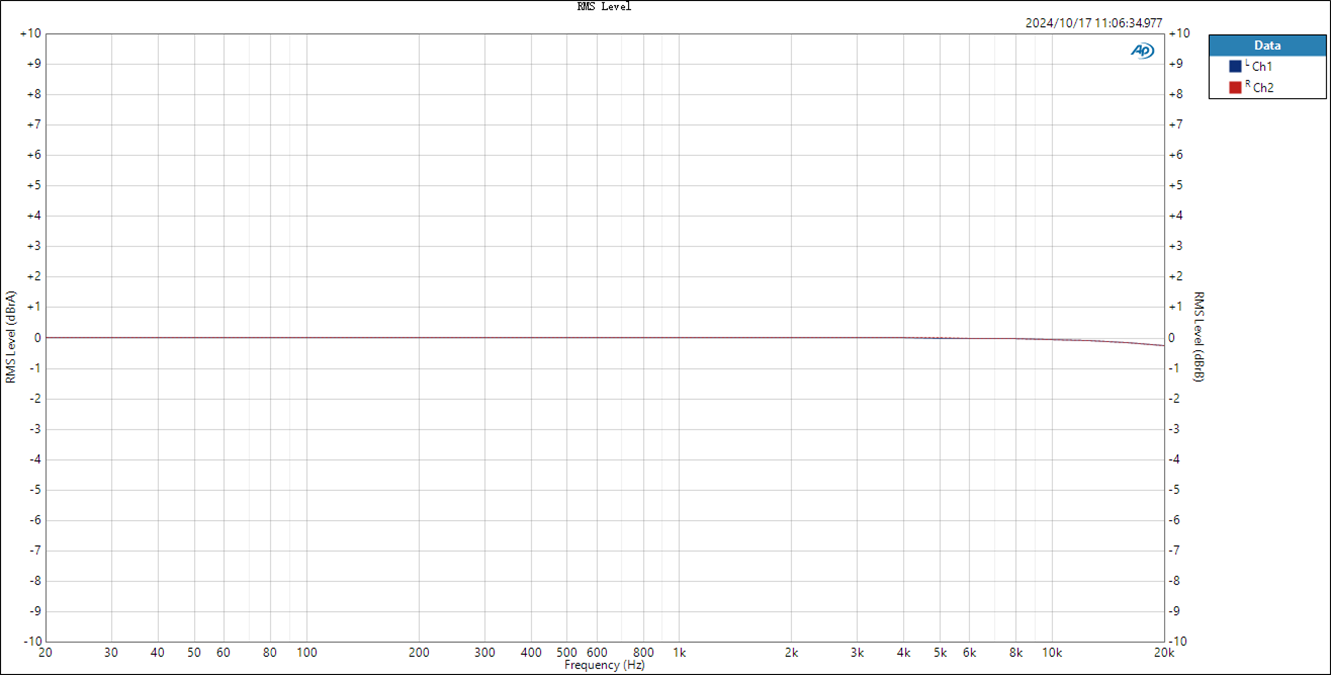

| 频率响应 |
20Hz ~ 70kHz ：衰减< 2.8dB |
线路输出电平 |
8.9Vrms |
| 20Hz~20KHz: attenuation＜0.3dB |
|
|

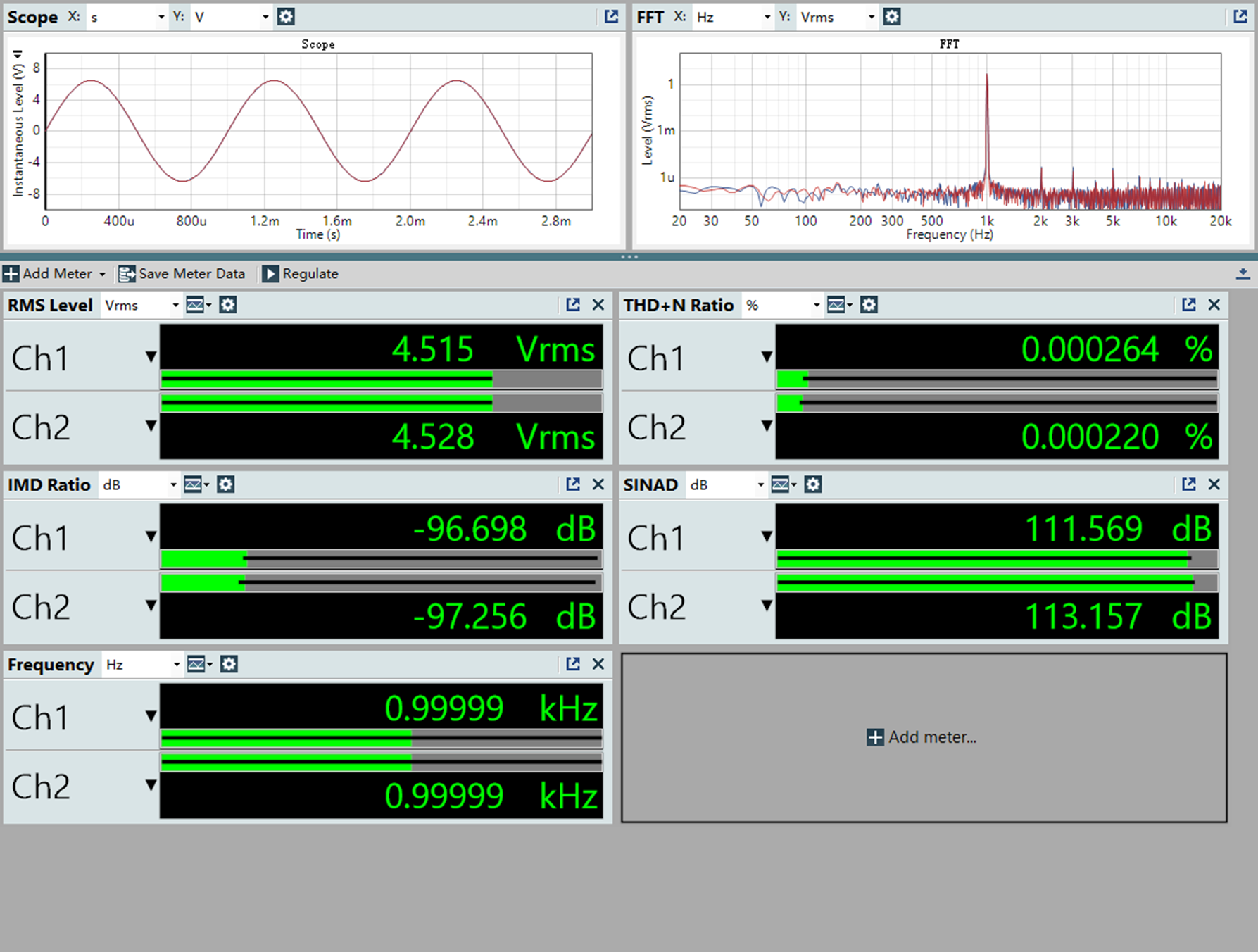

| Performance and parameters of pre RCA out (RCA out, USB DAC/Optical/Coaxial/AES decoding) |
| THD+N |
＜0.00026% (1kHz/-0dB@10KΩ) |
SNR |
≥ 128dB （ A加权） |
| 串扰 |
≥120dB |
本底噪声 |
＜ 1.8uV （ A加权） |
| 频率响应 |
20Hz ~ 70kHz ：衰减< 2.8dB |
线路输出电平 |
4.5Vrms |
| 20Hz~20KHz: attenuation＜0.3dB |
|
|

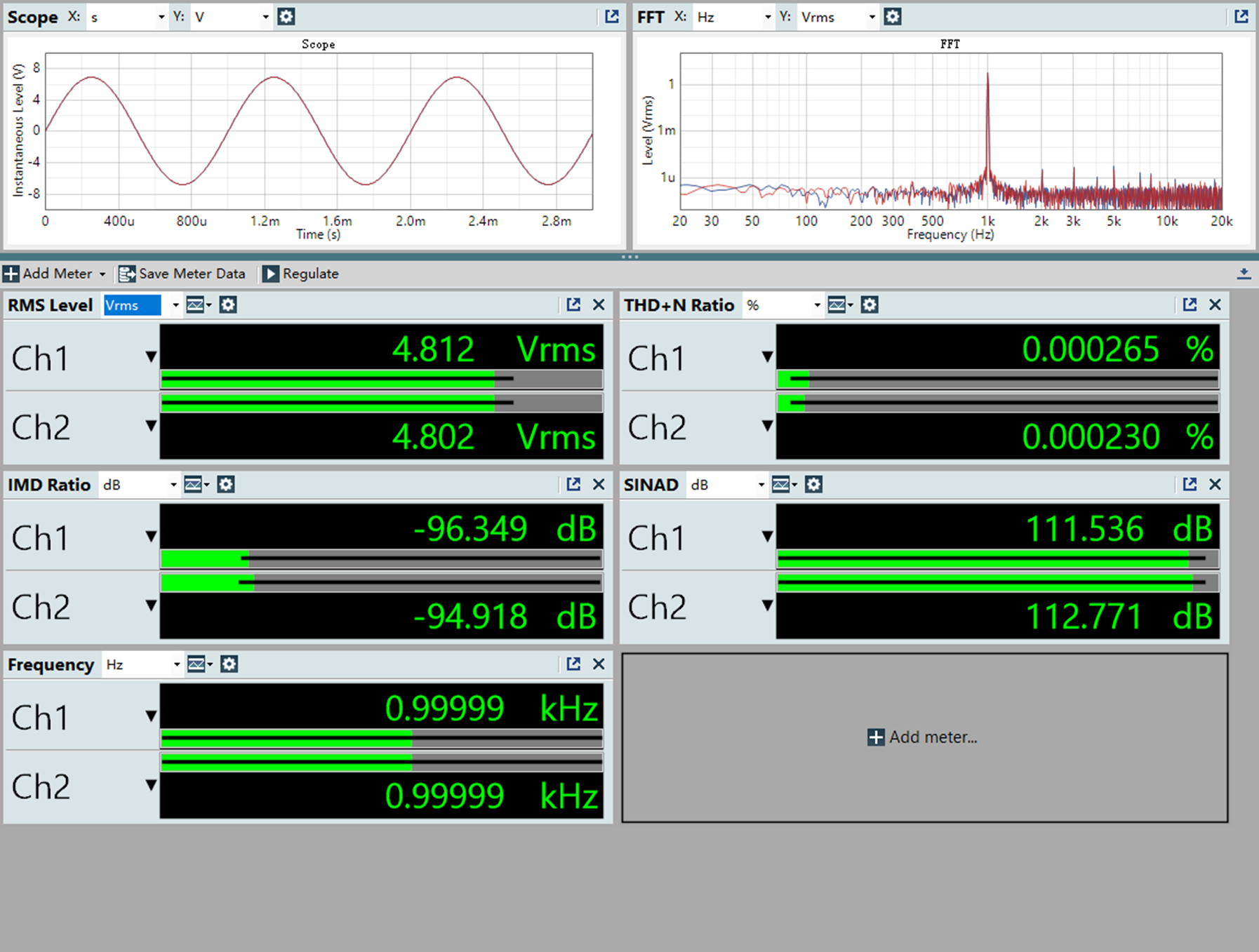

| Performance and parameters of XLR out (XLR3 out, USB DAC/Optical/Coaxial/AES decoding) |
| THD+N |
＜0.00026% (1kHz/-0dB@10KΩ) |
SNR |
≥ 126dB （ A加权） |
| 串扰 |
≥120dB |
本底噪声 |
＜2.5uV (A-weighted) |
| 频率响应 |
20Hz ~ 70kHz ：衰减< 2.8dB |
线路输出电平 |
4.8Vrms |
| 20Hz~20KHz: attenuation＜0.3dB |
|
|

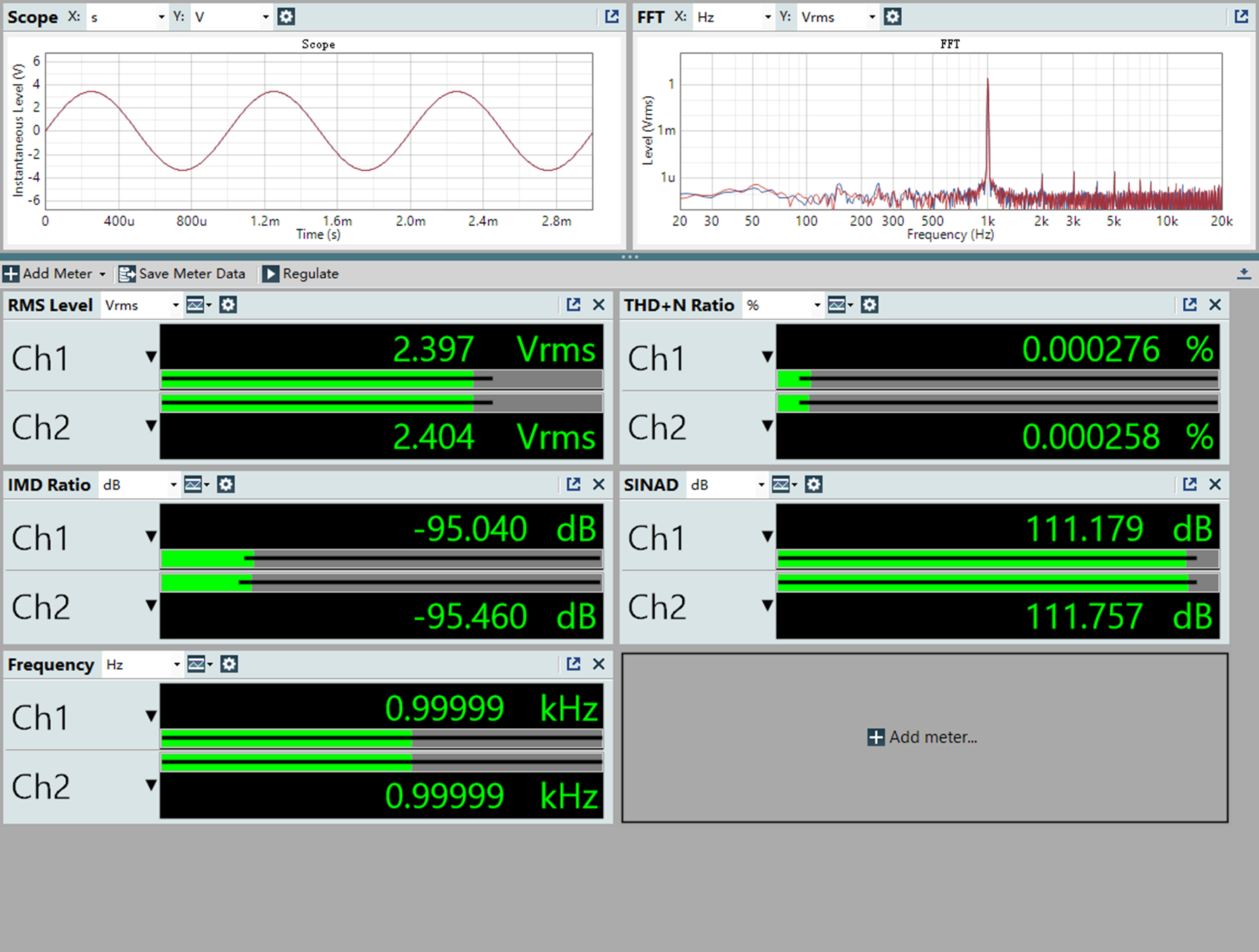

| Performance and parameters of RCA out (RCA out, USB DAC/Optical/Coaxial/AES decoding) |
| THD+N |
＜0.00027% (1kHz/-0dB@10KΩ) |
SNR |
≥ 122dB （ A加权） |
| 串扰 |
≥117dB |
本底噪声 |
＜ 1.8uV （ A加权） |
| 频率响应 |
20Hz ~ 70kHz ：衰减< 2.8dB |
线路输出电平 |
2.4Vrms |
| 20Hz~20KHz: attenuation＜0.3dB |
|
|
